Yas Spiral Forming & Binding Tshuab
Cov yas kauv sib sau thiab khi tshuab yog lwm tus masterpiece ntawm peb lub tuam txhab koom nrog kev siv tshuab thoob ntiaj teb nrog kev txhim kho tshiab. Nws koom ua ke ntau yam txheej txheem xws li tsim kauv, ntxig, txiav thiab khoov. Nws yog qhov tsim nyog rau kev tsim cov phau ntawv yas nplhaib thiab phau ntawv sau.
◎ Tsim nyog Layout & Optimized Structure: Tsim kom muaj kev ua haujlwm siab - nrawm thiab ruaj khov, kev teeb tsa dual - chaw nres tsheb ua haujlwm tau zoo dua qub.

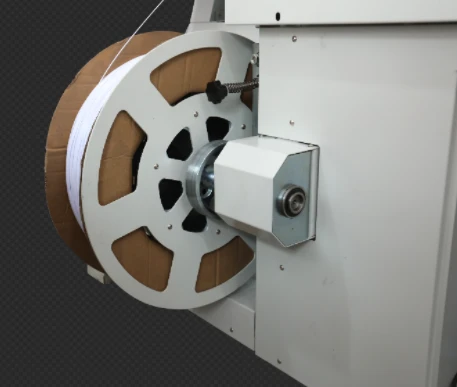

◎ Integrated Spiral Forming Process: Kev pub cov yas xaim ncaj qha zoo heev txo cov nqi khoom thiab txo cov khoom pov tseg thaum lub sij hawm poob.
◎ Patented Binding Mechanism: Ua kom muaj kev sib tw nruab nrab rau cov khoom tuab thaum muab kev ruaj ntseg ntau dua rau nyias mus rau nruab nrab- cov khoom tuab.
◎ xaiv me me -loj dual- cov phau ntawv ib txhij khi rau kev txhim kho kev tsim khoom ntau dua.
|
线圈内径(mm) Sab hauv dia.(mm) |
最大装订厚度 (mm) Max khi thickness (mm) |
线径(mm) Hlau dia.(mm) |
推荐孔径(mm) Pom zoo qhov dia.(mm) |
|
8 |
4.5 |
1.6 |
Φ4.5 |
|
10 |
6 |
1.6 |
Φ4.5 |
|
12 |
8 |
1.6 |
Φ4.5 |
|
14 |
10 |
1.8 |
Φ5 |
|
16 |
12 |
1.8 |
Φ5 |
|
18 |
13.5 |
2.0 |
Φ5 |
|
20 |
15.5 |
2.0 |
Φ5 |
|
22 |
17 |
2.2 |
Φ6 |
|
25 |
20 |
2.2 |
Φ6 |
|
28 |
23 |
2.4 |
Φ6 |
|
|
|||
|
技术参数Technical Date |
|
|
装订幅面binding ntau yam: |
装订边 khi npoo: 72-420mm 非装订边 unbound npoo: 72--300mm |
|
装订圈直径binding nplhaib dia.: |
8-28 hli |
|
装订孔距可选范围: Optional ntau yam ntawm binding suab: |
4: 1 (6.35mm) 3: 1 (8.47mm) 标配 standard configuration 其他孔距可定制 Lwm lub suab tuaj yeem kho tau |
|
生产速度 ntau lawm ceev: |
最高可达800本/小时 mus txog 800 phau ntawv ib teev twg |
|
外形尺寸(长Ï宽Ï高): Loj (LÏWÏH): |
2.0m*1.6m*1.7m |
|
Qhov hnyav: |
1000 kg |
|
Lub zog muaj zog: |
3 PH 380V 8 KW |
|
气源air source: |
5-8 Kgf |
Video Link: https://youtu.be/J7IHkjMpJqs?si=7IEdBrLyNVmuFuFs
Tshuab muaj CE thiab twb tau xa tawm mus rau ntau lub teb chaws, yog tias koj tab tom nrhiav lub tshuab ua qhov haujlwm, thov hu rau kuv, yuav muab kev txhawb nqa kom meej thiab txaus siab rau koj.
